SPECIFICATIONS

Audio Format Support: MP3, WAV

Balanced Out: No

Battery Life: < 10 hours

Battery Specification: External Power

Bluetooth: Yes

Body Material: Plastic

Brand Name: kebidumei

Certification: CE

Compatible Devices: Android

DAC: -

DSP: -

Designed for motor vehicle installation: No

Dimensions (WxHxD): -

Display Size: None

External Memory: Yes

Feature 1: mp3 player

Feature 10: decoder board car

Feature 2: mp3 player bluetooth

Feature 3: placa decodificadora mp3 bluetooth

Feature 4: placa bluetooth

Feature 5: modulo bluetooth audio

Feature 6: decoder board audio module

Feature 7: decoder board bluetooth

Feature 8: decoder board audio kit with remote

Feature 9: decoder board audio module 12v

Function: FM Radio,Bluetooth

Have Speakers or not: No

High-concerned chemical: None

Model Number: MP3 Decoder Board

Operation Mode: Touch Tone

Origin: Mainland China

Package: Yes

Screen: No

Signal Noise Ratio: ≥89dB

Storage Type: Hard disk

Streaming Service Compatibility: Other

Style: mp3

Supports EBook Reading: No

Supports FM: Yes

Supports Recording Function: Yes

WIFI: No

2*25W DC6v-18v

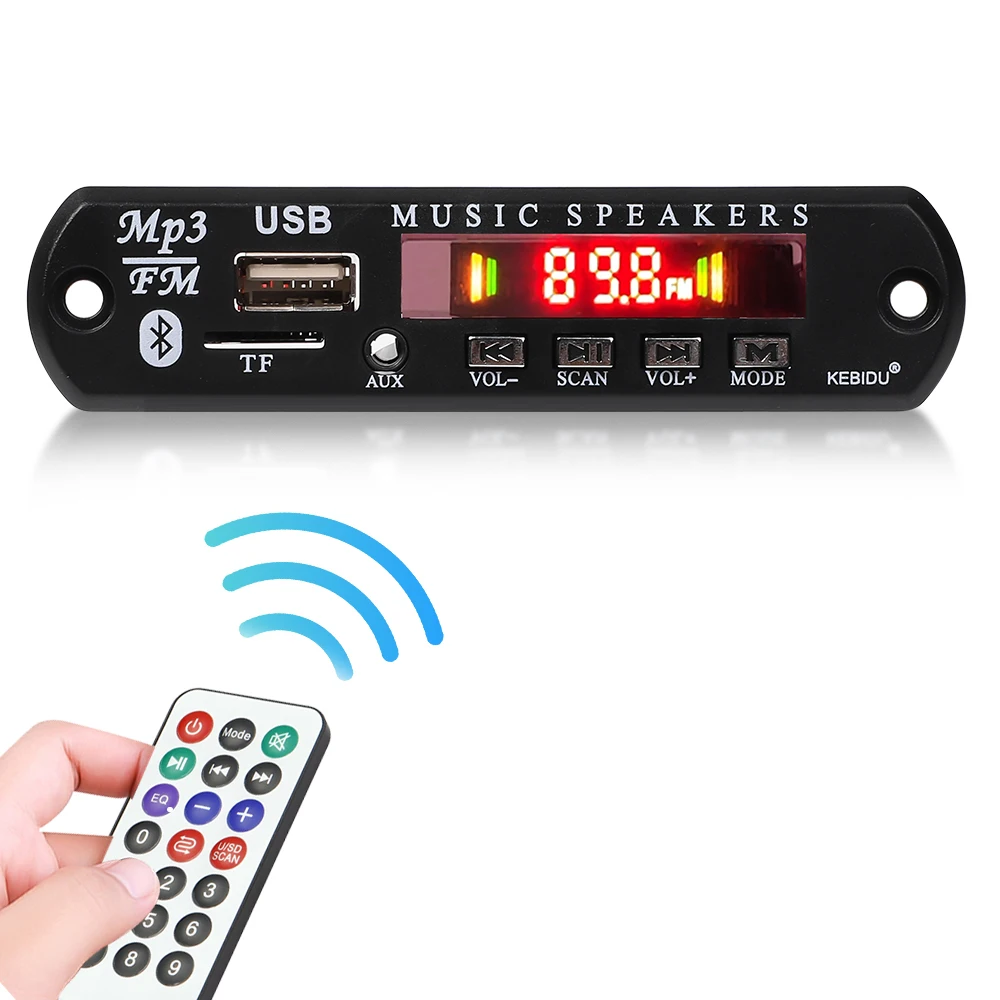

Key Description:

USB: Connect U disk (maximum support 32GB)

LED: Digital color screen display, red infrared receiver module

TF: Connect TF memory card (maximum support 32GB)

AUX: Audio input interface

VOL-: Short press is to select the previous song; long press is to decrease the volume

PLAY/PAUSE: Short press is to switch between pause and play; long press is to automatically search for radio FM

VOL: Short press is to select the next song; long press is to increase the volume

MODE: USB/TF/FM/AUX/BLUETOOTH sound switch

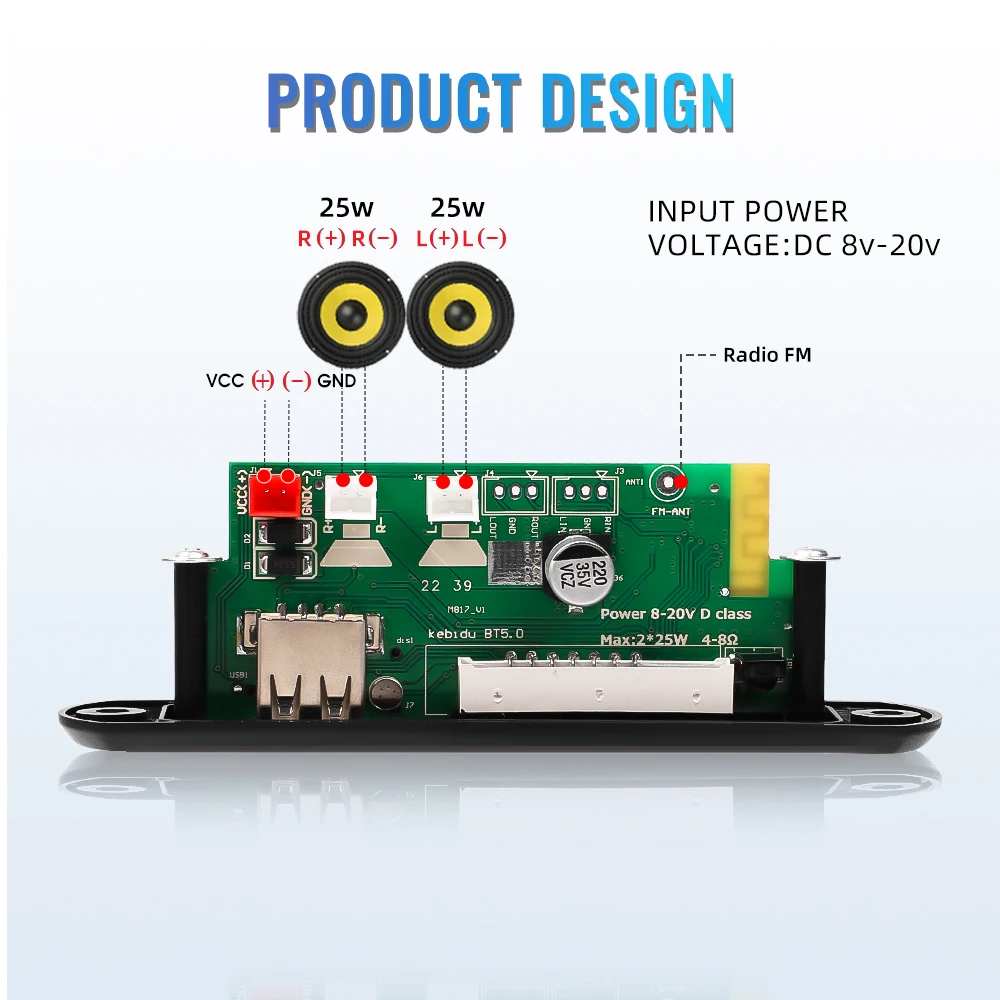

Interface Description:

Audio input RFM antenna solder joint

Audio input L GND

Left channel positive L

Left channel negative L-

Right channel positive R

Right channel negative R-

Audio output L GND Audio output R

Special function description:

1. Support folder playback

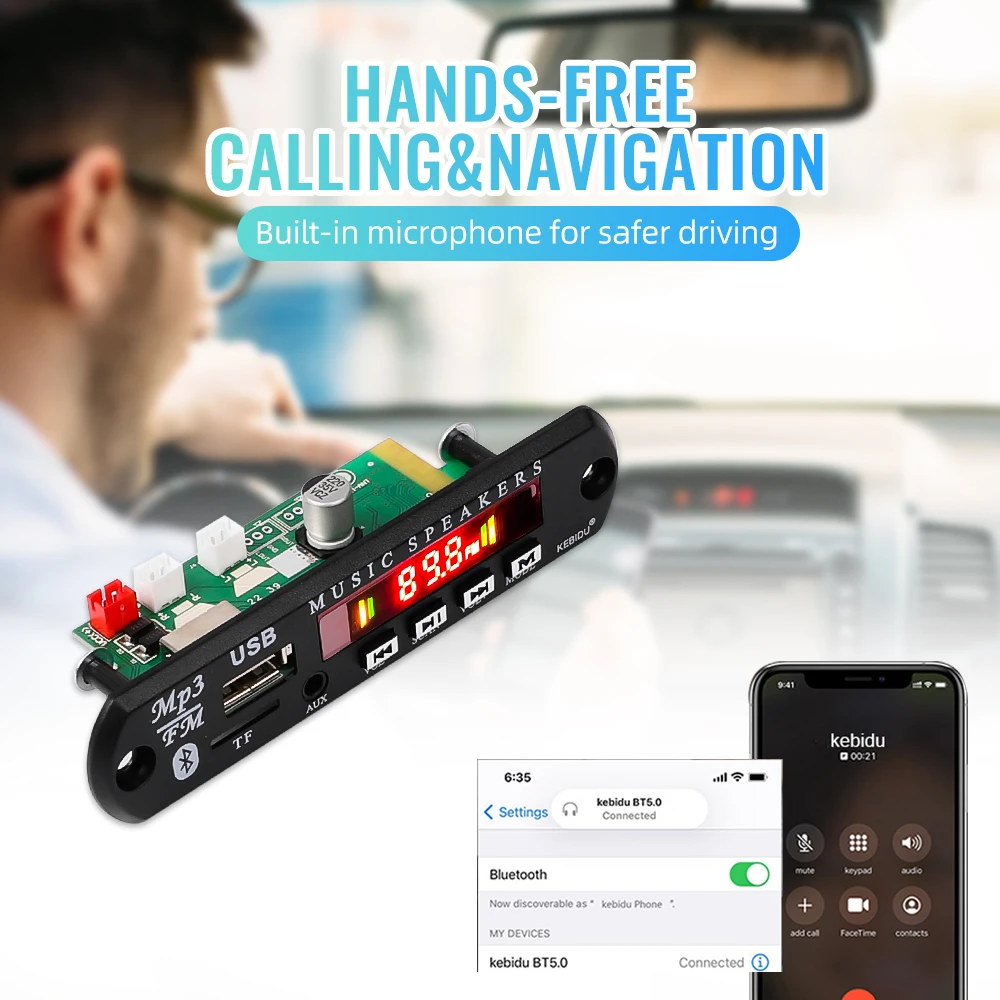

2. Support call

3. Support recording. Recording only supports operation in TF mode or USB mode.

(Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recording file; when recording, it is more necessary to connect a storage device, such as a U disk or TF card;)

4. Support power off memory (support the last mode and volume memory. (The last setting before power off will be played after power on)

5. Color screen display

6. The power supply voltage supports between DC6v-18v, and the current is between 1-3A.

7. Can be directly connected to speakers, with power amplifier and decoding functions.

8. Support song format MP3 /WMA / WAV / APE / FLAC

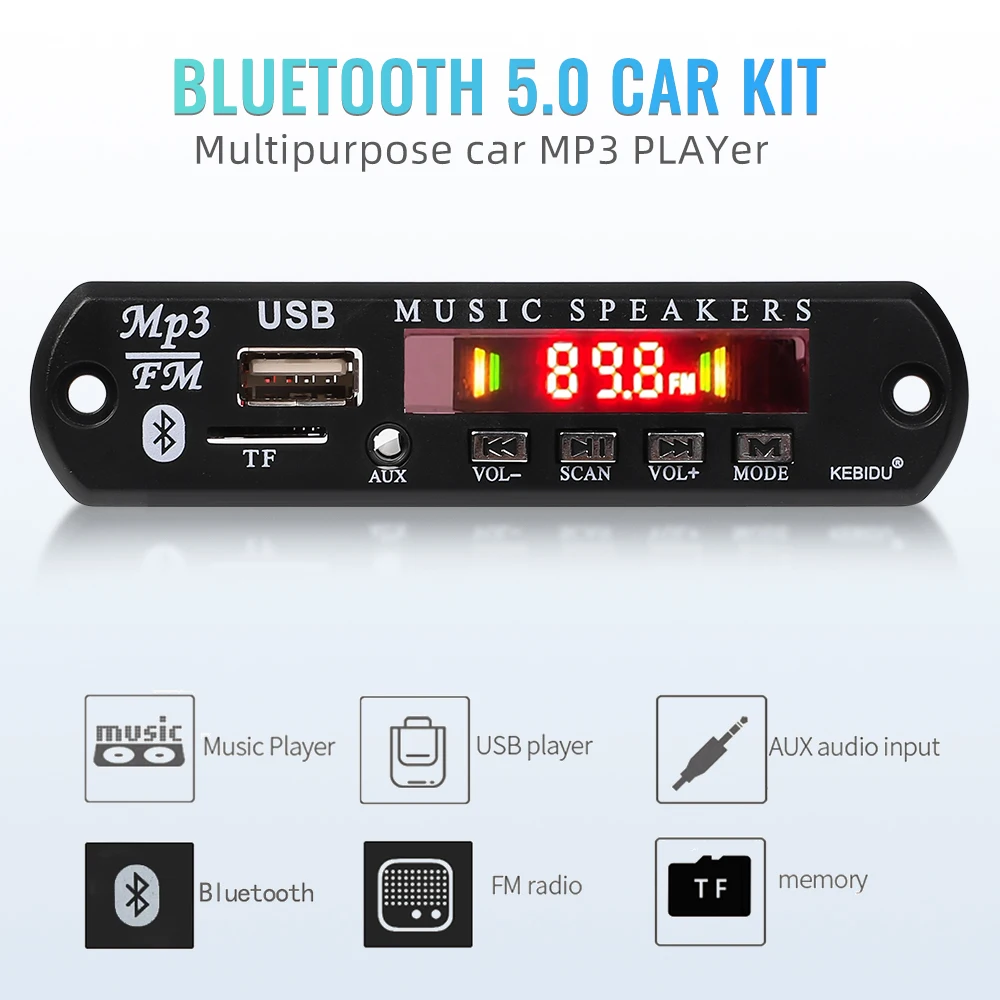

9. Main functions MP3/USB/TF/LINE IN/FM/BLUETOOTH/remote control/

10. The Bluetooth version is 5.0

11. Chip model Zhongke Lanxun 5536A

12. Power 50W, true stereo dual channel. (2*25W)
