Overview

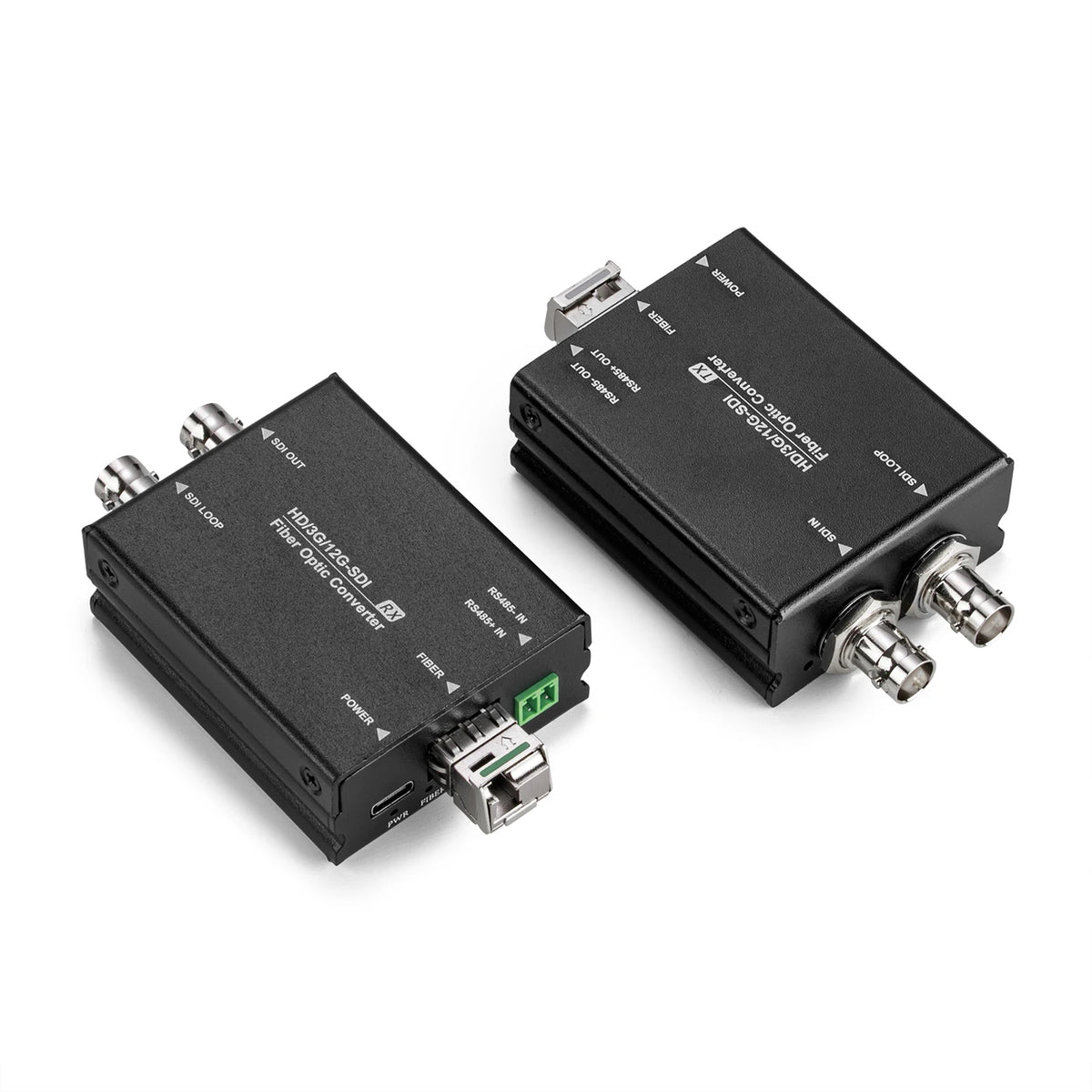

The 12G-SDI uHD audio and video optical converter is self-developed by our company,with independent intellectual property rights,absorbing the advantages of similar products at home and abroad,combined with the actual demand of the market.it can transmits one channel forward 12G-SDI video and one channel reverse RS485 Data / Tally signal (optional) through a single fiber optic cable,realizing no delay,no compression,high-quality signal extension of 20km.

12G-SDI uHD audio and video optical converter built-in serial clock recovery,signal equalization and line drive,input automatic detection signal 12G-SDI/6G-SDI/3G-SDI/HD-SDI/SDI/ASI,compatible with SMPTEST2082-1 (12GUHD-SDI), ST2081-1 (6GUHD-SDI), SMPTE424M,SMPTE292M, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M standards;

12G-SDI uHD audio and video optical converter support plug-and-play SFP optical module,which can replace the corresponding optical module according to the actual site requirements,the equipment power consumption is less than 1.5W,the Type-C port is used for power supply,support USB power supply system,which is flexible in use;

The circuit board of the 12G-SDI uHD audio and video optical converter adopts multi-layer design,stable and reliable,strong
anti-interference ability;all components including connector,use products from internationally renowned manufacturers with reliable quality; aluminum shell design,corrosion resistance,outstanding thermal and conductive function;

Features
1.Support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI);
2.Both transmitter and receiver have clock recovery function; (clock restorer can reduce high frequency jitter and completely regenerate data with pure low jitter clock);
3.The clock restorer is locked to 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or 1.001 frequency division sub rate and SMPTE rate of 270Mbps;
4.Signal input has automatic cable equalization (EQ) function, output has drive (CD) function;
5.Support plug and play SFP optical module, which can replace optical module corresponding to different distances or interfaces according to the actual site requirements;
6.Support single-mode single-fiber / dual-fiber transmission distance 20km (default)
7.Support status light display;
8.Support USB device power supply;
9.Plug and play, without debugging;

Ho-link Technology Co., Limited is a Asia company specializing in the development of high quality products for the broadcast market sectors.Our superior Engineering team have decades of accumulated experience in the broadcast and fiber audio & video solutions fields:

(1) UltraHD 4K/6G/12G Solution.

(2) SDI Broadcast Solution.

 (3) EFP with Data,Audio,Intercom,Tally,Ethernet,Telephone to Fiber Converter.

(4) HDMI/DVI/VGA/KVM Video to Fiber Converter.

(5) Balanced Audio to Fiber Converter.

 (6) 10/100Mbps and 10/100/1000bps Multi-ports Ethernet

. (7) TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter.

The complete product portfolio applies the latest technologies in the areas of digital and analog signal processing. we widely use of programmable technology enables rapid product adaptations as the market demands without having to develop new hardware.

This new technology has resulted in a powerful, high quality solution. All products were customized and developed in close cooperation with European and America Broadcasters who helped refine and specify features and set performance levels. All modules have been extensively field-tested by broadcasters and are widely using all over the world.
