FlyMind Aluminum 5.8GHz 2.5W High Power FPV Signal Transmitter

Name: FlyMind Aluminum 5.8GHz 2.5W High Power FPV Signal Transmitter
Brand: Electro Sphere
SKU: 1601779219192-Transmitter & Receiver-General-FV-02W500-A1
Price: 440.3 ZAR
Availability: InStock

R 440.30

🚚 Free shipping on orders over R1,500

🔒 Secure checkout — SSL encrypted

📦 Tracked delivery — SA & international

🛡️ 30-day returns on eligible items

SPECIFICATIONSAntenna Connector: MMCXCable Connector: JST 6pin (Single 12-28v input and single ground)Channels: 80CHMaterial: Aluminum,ABSSize: 36x36x8 mmWeight: 23gbrand name: FlyMindcompatible brand: generalplace of origin: Hunan, Chinaprivate mold: YesWireless Video Transmitter VTX For Drone FLYM-PV02W500-A1 Prod...

🚚 FREE shipping on orders over R1,500
🛡️ 30-day returns on eligible unused items
🔒 100% secure SSL checkout
📦 Tracking provided on all orders

🛡️

30-Day Returns Returns on eligible unused products. Terms and exclusions apply.

🔒

Secure Checkout Encrypted with SSL — your data is safe.

💳 Secure Payment Options

VISA Mastercard PayPal

Pay securely with card or PayPal • Instant processing

SPECIFICATIONS

Antenna Connector: MMCX

Cable Connector: JST 6pin (Single 12-28v input and single ground)

Channels: 80CH

Material: Aluminum,ABS

Size: 36x36x8 mm

Weight: 23g

brand name: FlyMind

compatible brand: general

place of origin: Hunan, China

private mold: Yes

Wireless Video Transmitter VTX For Drone

FLYM-PV02W500-A1

Product Features:

lAdopts high-performance RF PCB material (Rogers 4350B), enabling excellent RF performance in various environments.

lExcellent heat dissipation design ensures consistent performance in harsh conditions. A 5.8G carrier frequency allows signals to travel farther.

l80 frequency bands, covering 4.8~6.1G with arbitrary frequency points and customizable frequency combinations (step 1MHz). Supports SA protocol (customizable protocols are available).

Supports PIT mode: press and hold the module button while powering on to enter PIT mode. The high-strength CNC aluminum alloy shell provides good protection, heat dissipation, and support; some products have built-in fans for enhanced heat dissipation.

lPartial models support built-in sound collection.

lSupports 5V output.

lWide voltage input: 7~28V (2~6S).

lAll products adopt a lightweight design to reduce weight effectively.

lHigh-quality RF power amplifiers are selected to improve work efficiency.

lSingle-button operation minimizes the product volume.

lPartial models support MMCX interface antennas, reducing volume and weight.

Technical Specifications:

specifications Model	FLYM-PV02W500-A1
Input Voltage	12-28V, 6s battery is suggested
output Voltage	5V
Channels	80CH
Power	25mW/2.5W
Mounting Hole	30.5*30.5mm
Antenna Connector	MMCX
Power Consumption	12V@800mA 28V@300mA
Extra Feature	Built-in cooling fan & radiator
Microphone	Not Supported
Cable Connector	JST 6pin (Single 12-28v input and single ground)
Weight	23g
Size	36x36x8 mm

Button Control Instructions:

Press and hold the button to select a function, and the corresponding green indicator light will turn on.

Press the button briefly to select a gear, and the corresponding blue indicator light willl turn on .

1. The power indicator light is on

	25mW	2.5W
LED-4
LED-3
LED-2		*
LED-1	*

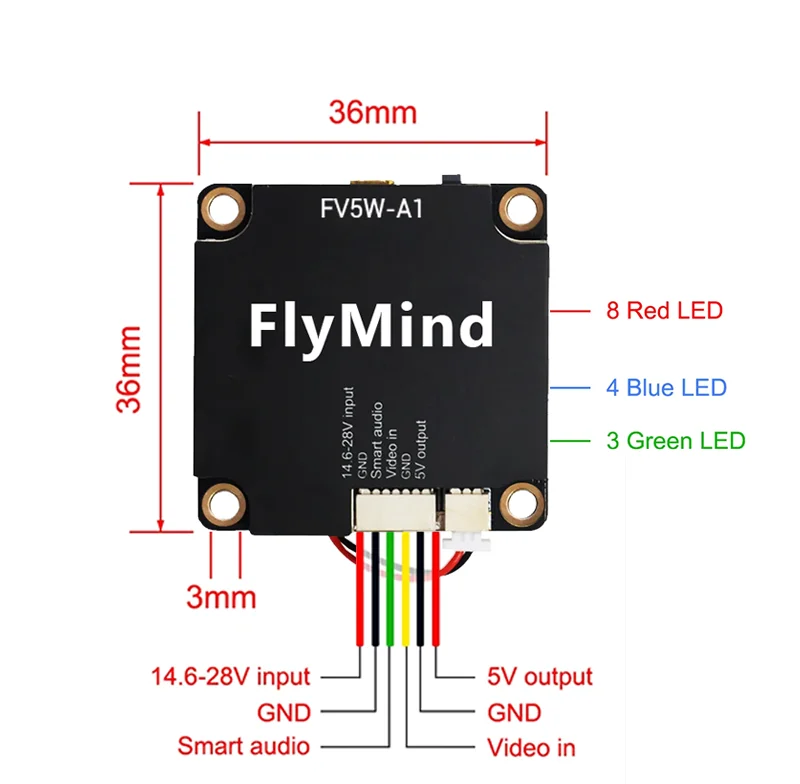

AI-url-img

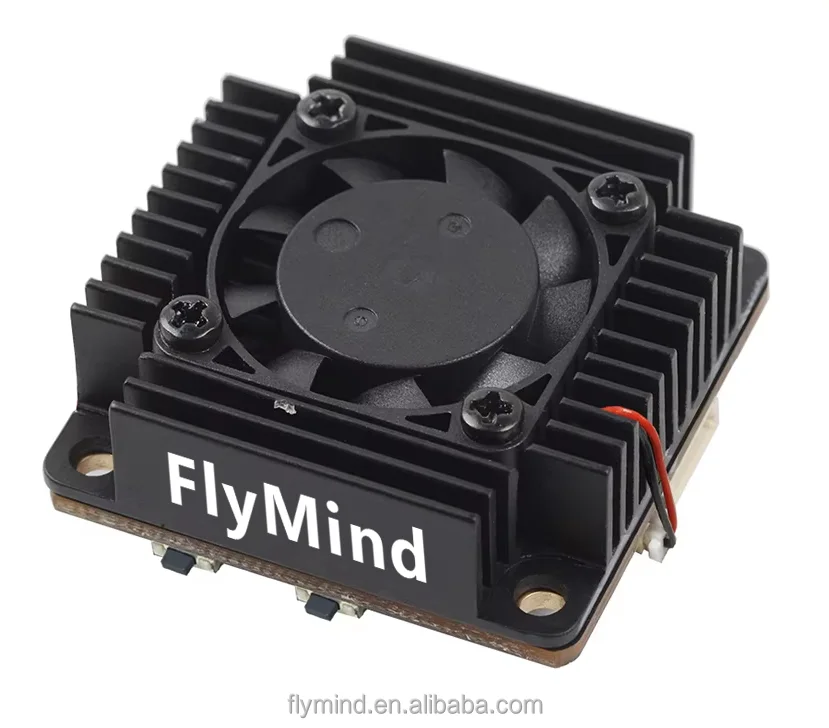

TX5000 _

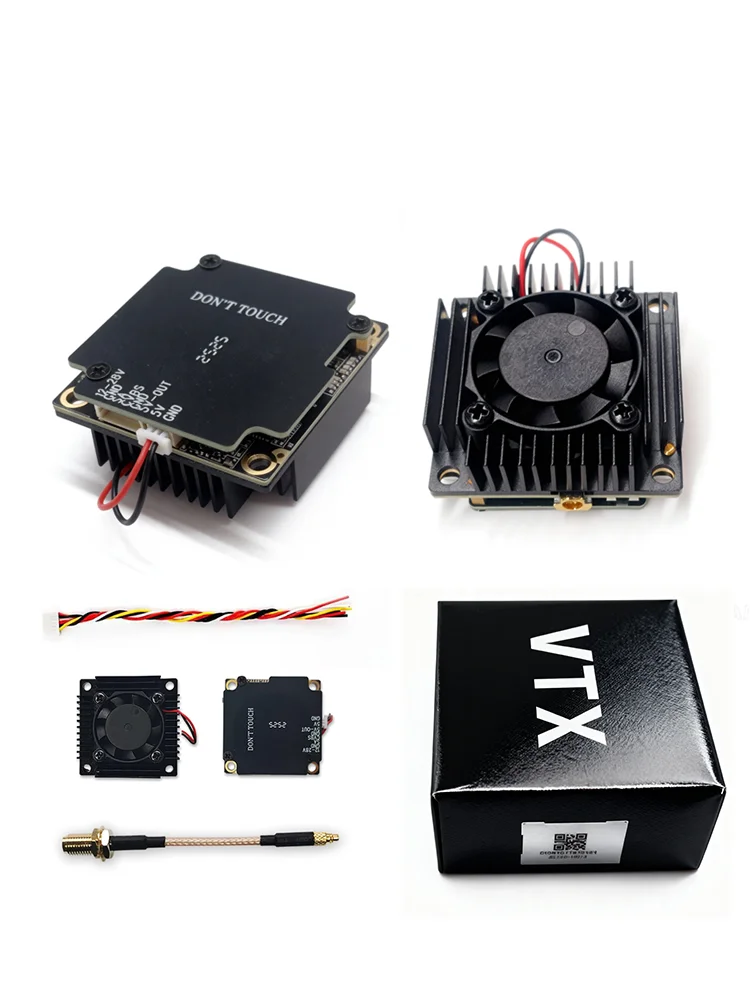

750x1000-5w-1

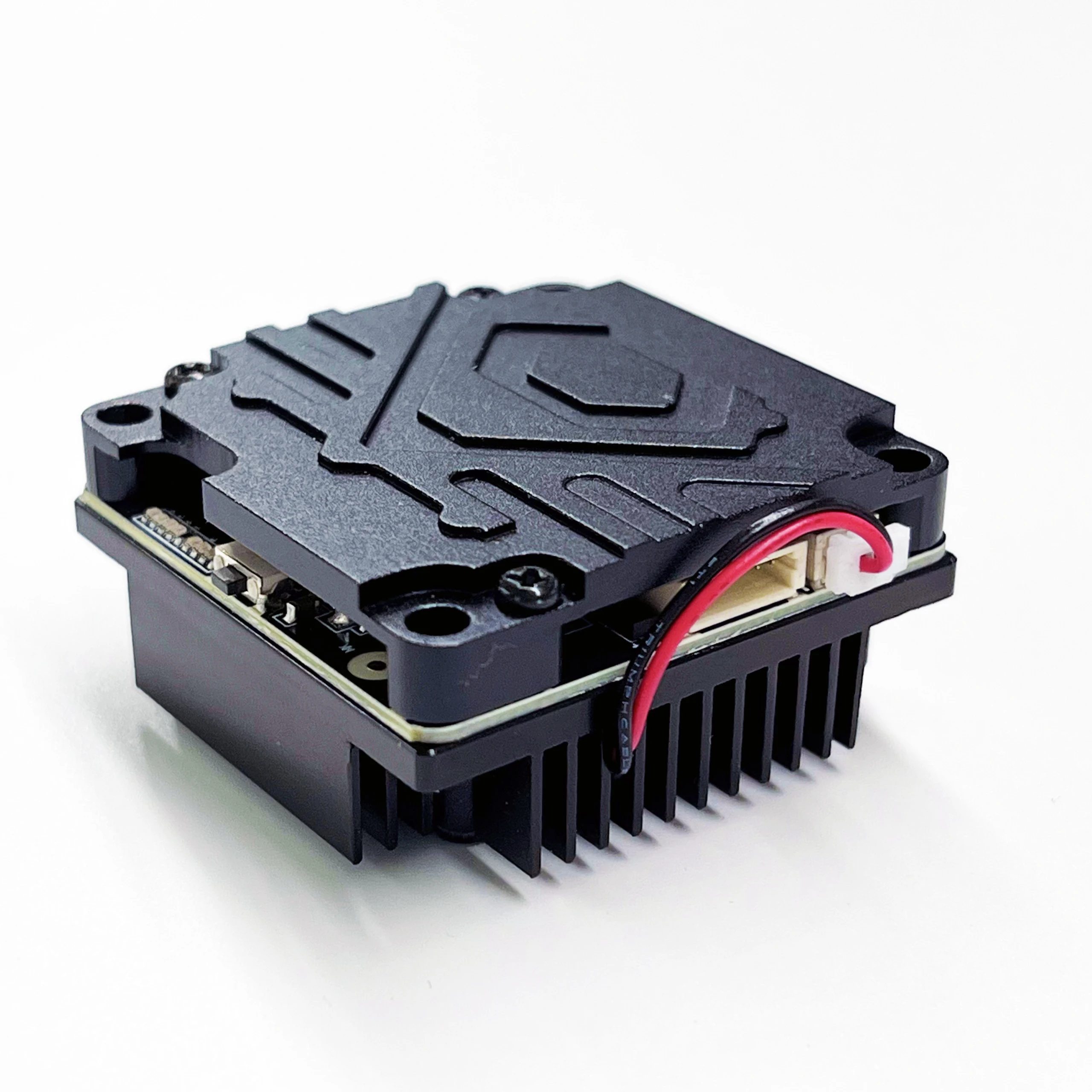

5W-1 (2)

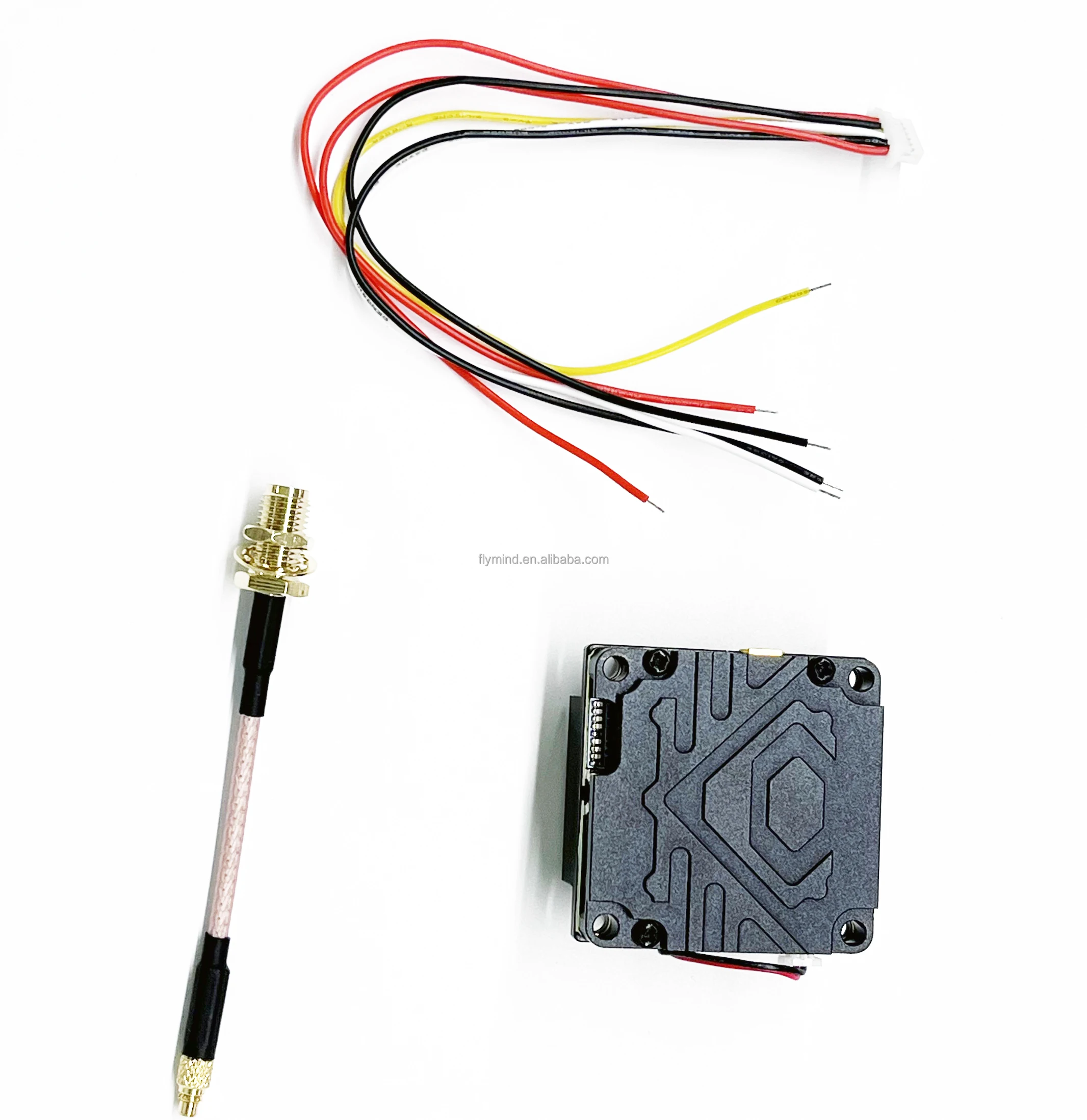

5W-2

3.The frequency band indicator light is on

	Band A	Band b	Band E	Band F	Band r	Band p	Band L	Band U	Band O	Band X
LED-4								*	*	*
LED-3				*	*	*	*
LED-2		*	*			*	*			*
LED-1	*		*		*		*		*

Pit Mode:

The VTX is fully accessible via smart audio. It supports pit mode.

Slow Power on:

The VTX will wait for 5 seconds before turning on power amplifier.

The 5 seconds slow power on will protect the VTX from being burned by maximum instantaneous power.

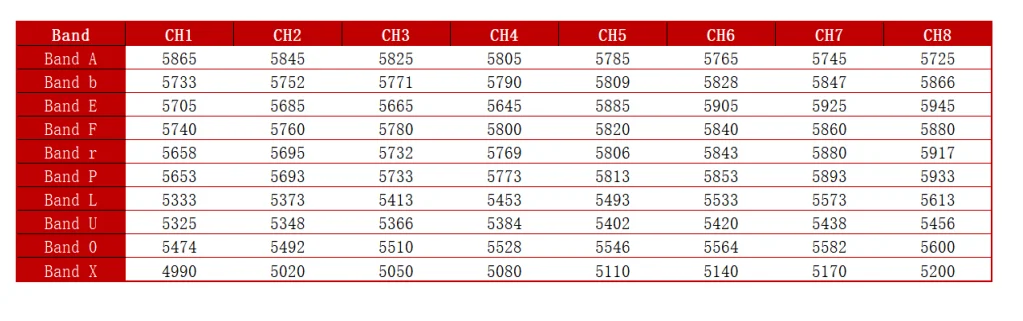

Band and channel Frequency Table:

_2026-05-08_151632_124

Product Type	Electronics
Brand	Electro Sphere
SKU	1601779219192-Transmitter & Receiver-General-FV-02W500-A1
Key Features
Availability	✓ In Stock
Condition	New - Factory Sealed
Warranty	30-Day Satisfaction Guarantee
